IiNkcazo zeeMveliso

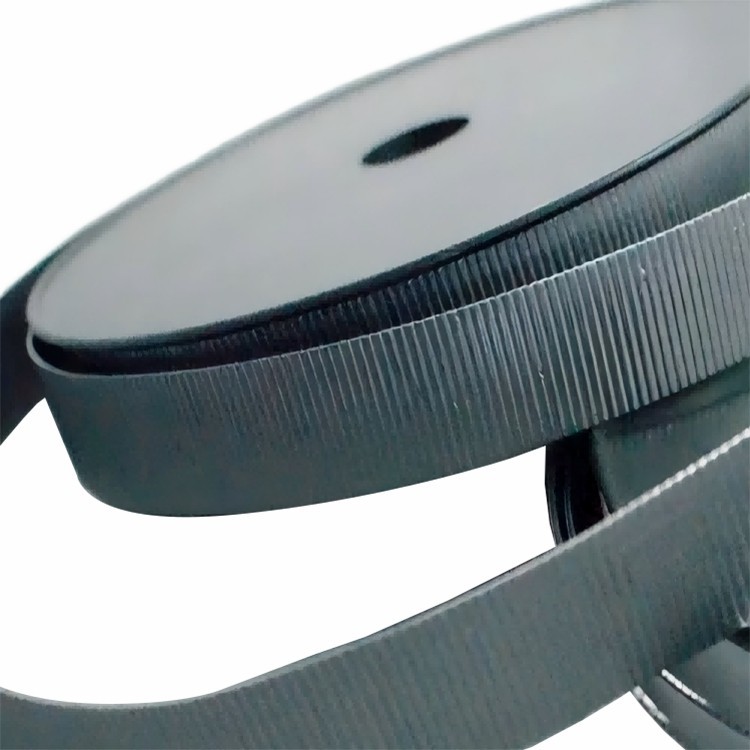

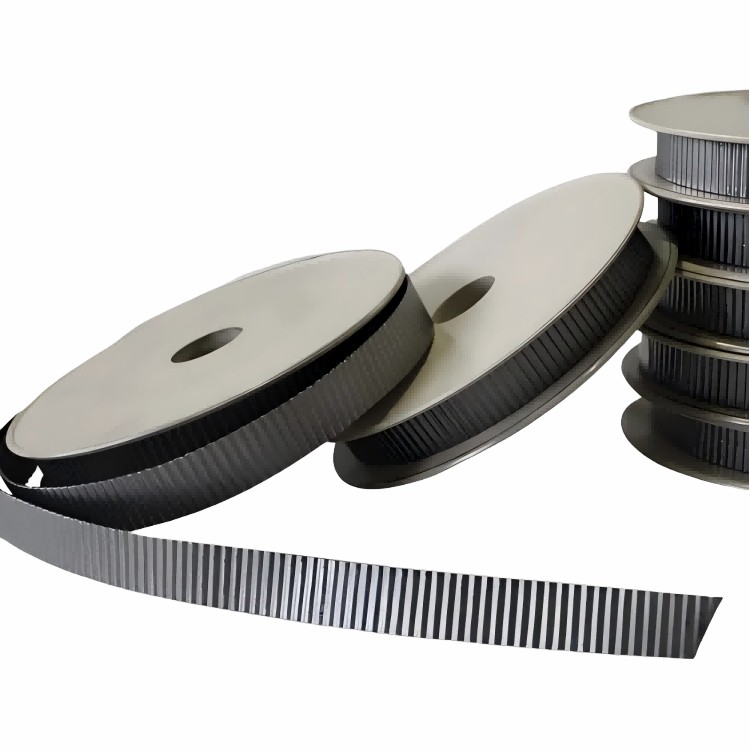

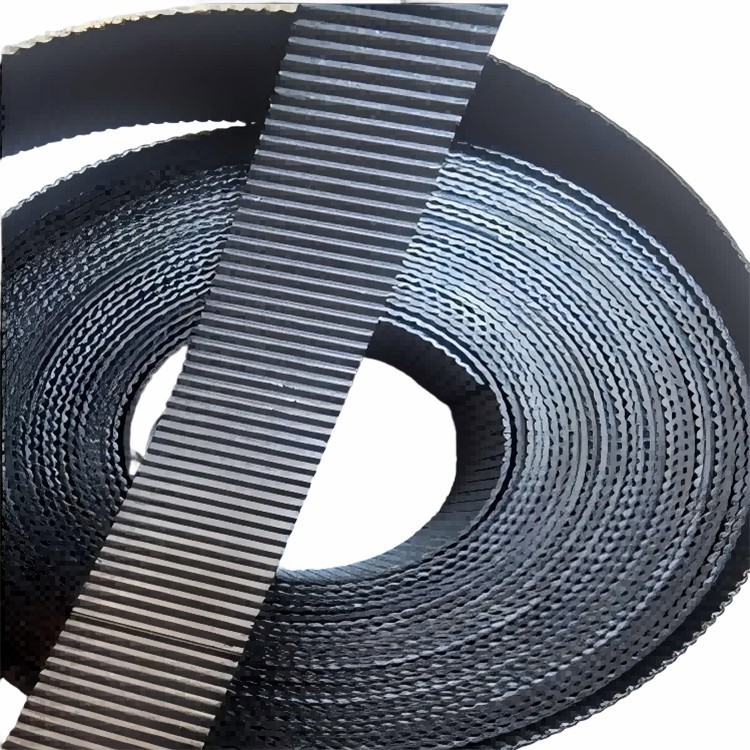

I-Corrugated Flexible Graphite Tape (ekwaziwa njenge graphite corrugated tape okanye igraphite corrugated composite gasket) zizinto zokutywina ezidla ngokusetyenziswa{0}}kumaqondo obushushu aphezulu,{1}}ophezulu{1}}noxinzelelo okanye iindawo ezidlekayo, ezinokuqina koxinzelelo kunye nokuzinza kweekhemikhali.
IiParameters zobuGcisa
|
Ipharamitha |
Uluhlu lokuchaza |
|
Ukutyeba |
0.1mm - 3.0mm (inokwenziwa ngokwezifiso) |
|
Ububanzi |
10mm - 1000mm (inokwenziwa ngokwezifiso) |
|
Ubude |
10m - 100m (okanye usike ubude obuthile ngesicelo) |
|
Umxholo weCarbon |
Enkulu kuno okanye ilingana ne 99.5% (phezulu-ubunyulu begraphite) |
|
Ubushushu bokusebenza |
-200℃ukuya 650℃(emoyeni); ukuya kuthi ga kwi-3000℃(kwindawo yegesi engasebenziyo) |
|
Uxinzelelo olukhulu lokuSebenza |
Ngaphantsi okanye ilingana ne-30MPa (iyahluka ngokugqitywa komphezulu weflange) |
|
Ukuxinana |
1.4g/cm³ - 1.8g/cm³ |
|
Ukucinezeleka |
Enkulu kuno okanye ilingana ne-15% (ivavanywe phantsi koxinzelelo lwe-30MPa) |
|
Ireyithi yoBuyiselo |
Inkulu okanye ilingana ne-10% (emva kokukhululwa koxinzelelo) |
|
Ukunyangwa koMhlwa |
Ukuxhathisa kwiiasidi ezininzi, iialkali, izinyibilikisi eziphilayo, kunye nomphunga; ayilungelanga imidiya eyomeleleyo ye-oxidizing (umzekelo,{2}}ubushushu obuphezulu be-nitric acid) |
|
Ukuthotyelwa kwezinto |
Iasbestos{0}esimahla, intsimbi enzima{1}esimahla |
Qaphela: Iimveliso zixhasa ulungelelwaniso olulolwakho.
Izinto ezingundoqo kunye noLwakhiwo
1
2
Ukuguquguquka kunye nokunyanzeliswa - kwesakhiwo esithathiweyo sibonelela ngembuyekezo enwebekayo ukuze ilingane ne-flange encinci -i-deformations (efana nokwandiswa kwe-thermal kunye nokucutheka).
Iimeko zosetyenziso oluqhelekileyo
(1) High-temperature flange sealing: Refinery reactor flanges, power plant high-temperature steam valves (hydrogen service systems with temperature >350 degree).
2
(3) Ukutywinwa komphezulu ongaqhelekanga: Isakhiwo esinamalahle sihambelana neendawo ezonakalisiweyo / ezingalinganiyo zeflange (ukugcwalisa ubunzulu bomkrwelo Ngaphantsi okanye bulingana no-0.2mm).
(4) Ugcino olungxamisekileyo (iplagi yoxinzelelo): Akukho mfuneko yokuvala umatshini, ubambe ngokuthe ngqo ukulungisa umbhobho/ukuvuza kwevalvu emva kokujija.
Iintlobo zeZakhiwo
1
(2) Uhlobo oluqinisiweyo: Iboshwe nge-mesh yensimbi okanye yongezwe ngeefibers ukuphucula amandla okuqina kunye nokumelana noxinzelelo.
(3) Uhlobo oluhlanganisiweyo: I-Corrugated Flexible Graphite Tape edibeneyo kunye nezinye izinto zokutywinwa ukuze zivumelane neemeko ezikhethekileyo zokusebenza.
